BMX Frames

Tested on the track and designed in conjunction with a team with BMX race knowledge spanning 3 decades, Radio Raceline Helium frames are well thought out and powerful pure bred race machines. You'll find no gimmicks, no "goofy" tubing shapes or unnecessary features. These frames have been built from the ground up with race proven geometry and technology combined with clean, functional aesthetics designed to give you the holeshot out of the gate. Radio Raceline Helium frames are designed to feel comfortable, stiff and fast, exactly how a race bike should.

The Grime frame is the signature frame of Denim Cox. Whether he's riding motocross, Barbie bikes or BMX, you know Denim tears it up on all terrain. Designed to Denim’s specification, with a steep 75.5 headangle, a 12.8 - 13.2” rear end length with an invest cast chainstay yoke for extra tire clearance and a 9” standover.

Perris Benegas signature frame made from 100% cult classic tubing. - Top and down tube gussets - Integrated headtube and externally machined mid BB shell - Investment cast seatpost clamp and seatstay bridge - Room for 2.40" tires - Tapered seatstays with removable brake mounts - Investment cast heat-treated dropouts - Short, quick, and responsive back end

Jake Seeley's signature frame is designed to complement his progressive, technical street riding. The Street Sweeper evolves directly from Jake Seeley's original Broadcaster frame by using shorter chain stays, a steeper head tube angle, a taller bottom bracket and smaller hollow dropouts with integrated chain tensioners. Built with versatility in mind, the Street Sweeper features removable u-brake hardware and Gyro tabs. The frame's front triangle makes use of traditional round Nightshift style top and down tubes with proven internal gusseting. - 100% 4130 Chromoly Frame - Nightshift style, double-butted, top and down tubes with proven internal gusseting - Integrated seat clamp - Butted Seat Tube & Miter Cut Top Tube: The seat tube is where all three triangles of the frame meet and it is crucial to keep this tube strong - Tapered Chain & Seat Stays: Both chain and seat stays taper to provide a refined and clean look to the frame while still providing strength. The are both angled on the inside for improved chain clearance and weight savings - Hollow Dropouts with Chain Tensioners: Hollow 8mm wide dropouts are as light as a solid 5mm dropout, but over twice as strong. There is a small internal chain tensioner to hold the wheel in place as well as simplify wheel removal - Removable Brake Hardware: Refined removable brake mounts and cable channel improvements that provides benefits with or without a brake setup

Designed specifically for technical park, transition and street riding, the new frame design has short chain stays with a steep head tube angle, a tall bottom bracket, hollow dropouts with integrated chain tensioners and a significantly lower standover. Includes all of the necessary (and fully removable) braking and Gyro tab. The front triangle makes use of traditional round Nightshift-style top and down tubes with internal gusseting for added strength. - 100% 4130 Chromoly Frame - Nightshift style, double-butted, top and down tubes - Integrated seat clamp - Hollow 8mm wide dropouts - Removable, brake mounts and cable guides/stops - Small internal chain tensioner to hold the wheel in position and to simplify wheel removal

Strong, lightweight and high-tech. The 3rd version of the Sunday Soundwave frame is the most advanced frame design that Sunday offers. It's loaded with features like proven hollow dropouts, integrated chain tensioners, Wave down tube and top tube, cable channel guide, angled removable brake mounts, "Director" style wishbone, post-weld machining of the bottom bracket & headtube, and full 41-Thermal post weld heat-treating throughout. The V3 features a shorter chainstay (now 13.2") and a taller headtube (now 5"). - Butted Seat Tube & Miter Cut Top Tube: The seat tube is where all three triangles of the frame meet and it is crucial to keep this tube strong - Boxed Chainstays: Updated chain stays with a "boxed" tube shape that helps fight denting. The new shape enables the frame to have a shorter rear end as well providing clearance for larger sized rear tires. It's not uncommon to see 2.35" - 2.40" tires in the rear on a Soundwave - Hollow Dropouts with Chain Tensioners: Hollow 8mm wide dropouts are as light as a solid 5mm dropout, but over twice as strong. There is a small internal chain tensioner to hold the wheel in place as well as simplify wheel removal - Braking Options: Refined removable brake mounts and cable channel improvements that provides benefits with or without a brake setup - 100% 4130 Chromoly Frame - Rust Proof Coating: All Sunday frames are rust-proofed with "Black Magic" coating before the final finish is applied. It is lightweight and the best anti-corrosion processing that's offered today

The Nightshift is 100% 4130 chromoly throughout, features super tough 41-Thermal heat-treating and comes with the proven Lifetime Warranty against bending, cracking and breaking. You'll find lots of design features on the Nightshift that are comparable to the top-of-the-line Soundwave, but this frame is built using traditional round tubing with unique internal gusseting for added strength. - 100% 4130 Chromoly Frame - Double-butted top and down tubes with proven internal gusseting - Post Weld Machining: The Mid BB and Headtube is machined to its absolute minimum without sacrificing strength or durability–machining happens after welding for a precision bearing fit - Hollow Dropouts with Chain Tensioners: Hollow 8mm wide dropouts are as light as a solid 5mm dropout, but over twice as strong. There is a small internal chain tensioner to hold the wheel in position and to simplify wheel removal - Removable Brake Hardware: removable brake mounts and cable channel improvements that provides benefits with or without a brake setup - Rust Proof Coating: All Sunday frames are rust-proofed with "Black Magic" coating before the final finish is applied. It is lightweight and the best anti-corrosion processing that's offered today

The Sunday Darkwave frame is built out of 100% 4310 chromoly and features Sunday's signature dent-resistant wave down tube to give riders a little extra peace of mind when things don't go according to plan. It stays looking clean with refined details like an integrated seat clamp, tapered stays, and integrated chain tensioners. Removable brake hardware and gyro tabs are also available when you need them and disappear when you don't. - 100% 4130 chromoly frame - Broc Raiford signature geometry - Removable U-brake hardware and Gyro tabs - Integrated seat clamp - Wave Down Tube: Down tube dents are common with the competitor's frames and they significantly weaken the front end of your bike. The double-butted, 1.45" diameter down-tube feature Sunday's proven Wave shaping to fight denting against contact made from a rail, ledge, coping and whatever else happens to get thrown at it. - Miter Cut Top Tube: A miter-cut top tube creates a precise joint with the seat stays during welding. This increases the strength substantially over frames that use a “sandwiched” top tube at this critical junction. - Tapered Chain & Seat Stays: Both chain and seat stays taper to provide a refined and clean look to the frame while still providing strength. They are both angled on the inside for improved chain clearance and weight savings. - Hollow Dropouts with Chain Tensioners: Hollow 8mm wide dropouts are as light as a solid 5mm dropout, but over twice as strong. There is a small internal chain tensioner to hold the wheel in position and to simplify wheel removal.

The ALVX AF+ is the latest version of Alex Donnachie’s signature ALVX frame. Featuring the same super tech geometry and ultra short rear end, but now with an updated invest cast chainstay yoke which maintains the tire clearance as well as creating a more rigid rear triangle and it also looks pretty sick. - Invest cast chainstay yoke which creates more clearance for the tire for when your wheel is slammed, because this part is cast and heat treated it strengthens the rear end of the frame by stiffening it up - 7mm thick invest cast dropouts to provide good support for your axle, and the small shape has been designed for grinding meaning there's no overhang to catch on ledges or rails,. The dropout is heat treated before welding making it extra tough with integrated chain tensioner bolts inside - Brake mounts: none - External gussets for strength - Sanko Japanese seamless 4130 chromoly

The Sureshot is designed with a more ramp/park/trails geometry than our other frames. Utilizing a low BB, longer rear end, mellower head angle and removable brake lugs, this frame is a true all rounder. - Tubing: Sanko Japanese seamless 4130 chromoly - Brake mounts: removable - brake kit available separately

Sunday's Discovery team frame features short chainstays, a tall bottom bracket, a long head tube and small hollow dropouts with integrated chain tensioners. Simplicity rules on the Discovery. The frame's front triangle makes use of traditional round Nightshift style top and down tubes with proven internal gusseting. Removable brake hardware and Gyro compatible as well. - 100% 4130 Chromoly Frame - Nightshift style, double-butted, top and down tubes with proven internal gusseting - Removable U-brake hardware and Gyro tabs - Integrated seat clamp - Butted Seat Tube & Miter Cut Top Tube: The seat tube is where all three triangles of the frame meet and it is crucial to keep this tube strong - Tapered Chain & Seat Stays: Both chain and seat stays taper to provide a refined and clean look to the frame while still providing strength. The are both angled on the inside for improved chain clearance and weight savings - Hollow Dropouts with Chain Tensioners: Hollow 8mm wide dropouts are as light as a solid 5mm dropout, but over twice as strong. There is a small internal chain tensioner to hold the wheel in place as well as simplify wheel removal

Introducing Gary Young's signature Wavelength frame. With a longer rear end and top-tube options, this frame is designed for riders who love to go fast and want a more stable ride for trails and transitions. - 100% 4130 chromoly frame - Removable U-brake hardware and Gyro tabs - Wave Down Tube: Down tube dents are common with the competitor's frames and they significantly weaken the front end of your bike. The double-butted, 1.45" diameter down-tube feature Sunday's proven Wave shaping to fight denting against contact made from a rail, ledge, coping and whatever else happens to get thrown at it - Miter Cut Top Tube: A miter-cut top tube creates a precise joint with the seat stays during welding. This increases the strength substantially over frames that use a “sandwiched” top tube at this critical junction. - Tapered Chain & Seat Stays: Both chain and seat stays taper to provide a refined and clean look to the frame while still providing strength. They are both angled on the inside for improved chain clearance and weight savings - Hollow Dropouts with Chain Tensioners: Hollow 8mm wide dropouts are as light as a solid 5mm dropout, but over twice as strong. There is a small internal chain tensioner to hold the wheel in position and to simplify wheel removal

DeHart BMX Frame - Integrated headtube - 5mm thick heat-treated dropouts - Top and down tube gussets - S-bend chainstays with room for 2.4" tires - No brake mounts

Brandon Begin signature frame made from 100% cult classic tubing for increased strength. - Top and down tube gussets - Integrated headtube and externally machined mid BB shell - Investment cast seatpost clamp and seatstay bridge - Investment cast chainstay yoke with room for 2.40” tires - Tapered seatstays - Investment cast heat-treated dropouts - Brakeless - Short, quick, and responsive back end

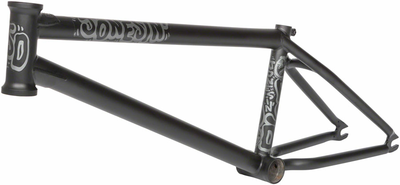

Sam Jones signature Jonesin' frame is the latest BSD frame. Designed for front end tricks with a steep 76 degree headtube angle, 8.9" standover height, and uses the new Supercoop chainstays for extra tire clearance. - Sanko Japanese seamless 4130 cromo tubing, triple butted - Supercoop chainstays–extra wide rear end - Brakeless frame - 7mm thick investment cast heat treated 4130 cromo dropouts with built-in chain tensioners - Investment cast seatstay bridge - Built in seat clamp - Weight: 5 lbs

2 Short BMX Frame - Integrated headtube - 5mm thick heat-treated dropouts - Tapered seatstays

BSD Freedom is Kriss Kyle's signature frame, designed to perform well on all terrain. This frame combines the stability of a low 11.5" BB, the responsiveness of a 75 degree head angle and the versatility of a short rear end. To create a stiffer rear triangle we've utilized an invest cast wishbone and invest cast seatstay bridge. - Constructed from Japanese Sanko seamless 4130 chromoly tubing, triple butted - Removable brake mounts, brake kit sold separately - Head tube and bottom bracket heat treated and CNC machined 4130 - Heat treated and investment cast 4130: chainstay wishbone, dropouts, and seatclamp - Frame weight: 5 lbs

If you live by that old saying that you should scare yourself a little every day, the P.Series P.3 is your huckleberry. Our hardtail freestyler delivers a bombproof ride with versatile geometry that shines whether you're in the park, on a flow trail or launching loading docks. RUGGED INDIVIDUALIST. Look, you're gonna wad it up now and then. So for the P.Series P.3, we put the focus on toughness and durability, with a proven frame and quality parts that will last for endless jumps, and every wall ride, because when you're going big, you have to trust your bike. - Over the years, we've dialed the P.Series Geometry in to a fine edge, with a roomy cockpit that lets you maneuver the bike underneath you and a tight wheelbase that won't get hung up in the tight quarters of your local skate park. Whether park, dirt, or street, the P.Series P.3 is built to handle it all. - When you're high in the air, you need a frame you can rely on to stick the landing. Our A1 Premium Aluminum frame features a tapered head tube to reinforce the front end against hard landings and forged horizontal dropouts with integrated chain tensioners to ensure your rear wheel stays solidly in place.

Chase Hawk signature frame made from 100% cult classic tubing for increased strength. Cult top tube gusset, integrated headtube and externally machined mid BB shell. Vintage style tapered seatstays with removable brake mounts and s-bend chainstays with room for 2.4" tires. - Made from 100% Cult Classic tubing for increased strenght - Investment Cast heat-treated dropouts - Integrated headtube and externally machined mid BB shell - Cult top tube gusset

The Utopia Hybrid frame differs from the Utopia frame being drilled for gyro tabs, pivot-3 removable brake mounts, 14mm slot dropouts, and the option for 20.5" toptube. - Tubing: butted and seamless Japanese 4130 chromoly - Technical street/flatland/park frame, shorter top tube and lower seat tube for younger riders - Hydroformed top and down tube for superior strength and stiffness - Wider rear triangle allows clearance for a 2.3" tire - Lifetime guarantee - 4.45lbs for 20" TT frame

The Safari frame is designed for Reed Stark with a super long front end combined with a short back end and regular head angle. It's built for urban adventure wherever your street safari takes you.
